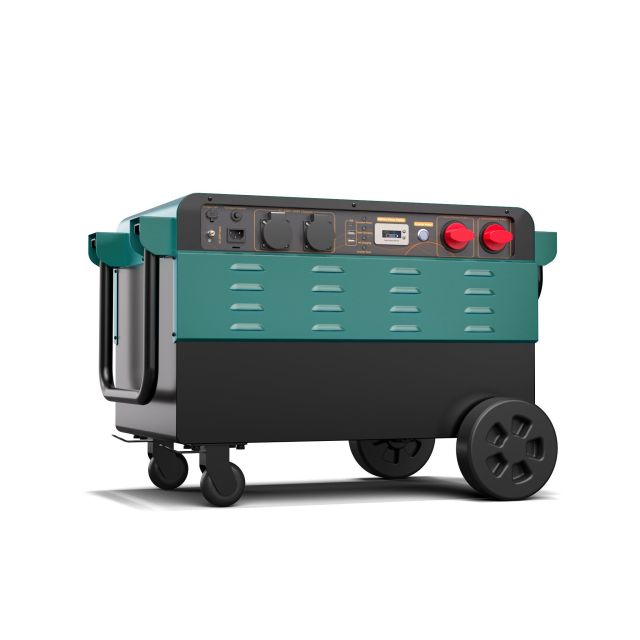

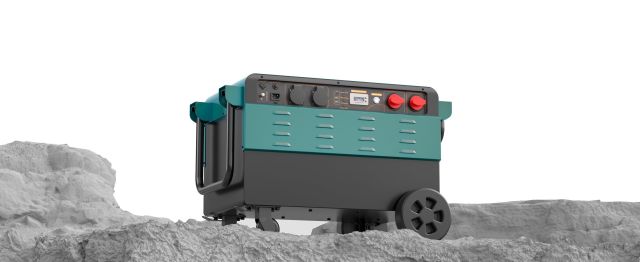

Capacity:5000W(25.6V/200Ah) Dimensions (L*W*H):720 x 520 x 574 mm Net weight of product:67KG Battery specification: Rated Battery Voltage: 25.6V DC Battery Capacity: 200Ah Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit, Overheat Protection, etc. Battery Cycle Count: ≥ 2000 cycles (80% capacity) Battery Dimensions: 520×269×220mm Solar controller specification: Constant voltage:29.2V DC Constant current:20A Maximum input voltage:36V DC AC input: AC input voltage:230VAC +/- 10% Constant voltage charging:29.2V DC Constant current charging current:30A Floating charge voltage:27.2V DC Inverter specification: Rated Output Power/Maximum Power: 4.5kW/5kW Peak Power:10kW AC Output Voltage Range: 230V±10V AC Output Frequency: 50Hz Output Waveform: Pure Sine Wave Cooling Method: Fan Cooling Inverter Protection Functions: Overload, Overheat, Short Circuit, Reverse Connection Protection, etc.
Product Description Capacity:5000W(25.6V/200Ah) Dimensions (L*W*H):720 x 520 x 574 mm Net weight of product:67KG Battery specification: Rated Battery Voltage: 25.6V DC Battery Capacity: 200Ah Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit, Overheat Protection, etc. Battery Cycle Count: ≥ 2000 cycles (80% capacity) Battery Dimensions: 520×269×220mm Solar controller specification: Constant voltage:29.2V DC Constant current:20A Maximum input voltage:36V DC AC input: AC input voltage:230VAC +/- 10% Constant voltage charging:29.2V DC Constant current charging current:30A Floating charge voltage:27.2V DC Inverter specification: Rated Output Power/Maximum Power: 4.5kW/5kW Peak Power:10kW AC Output Voltage Range: 230V±10V AC Output Frequency: 50Hz Output Waveform: Pure Sine Wave Cooling Method: Fan Cooling Inverter Protection Functions: Overload, Overheat, Short Circuit, Reverse Connection Protection, etc.

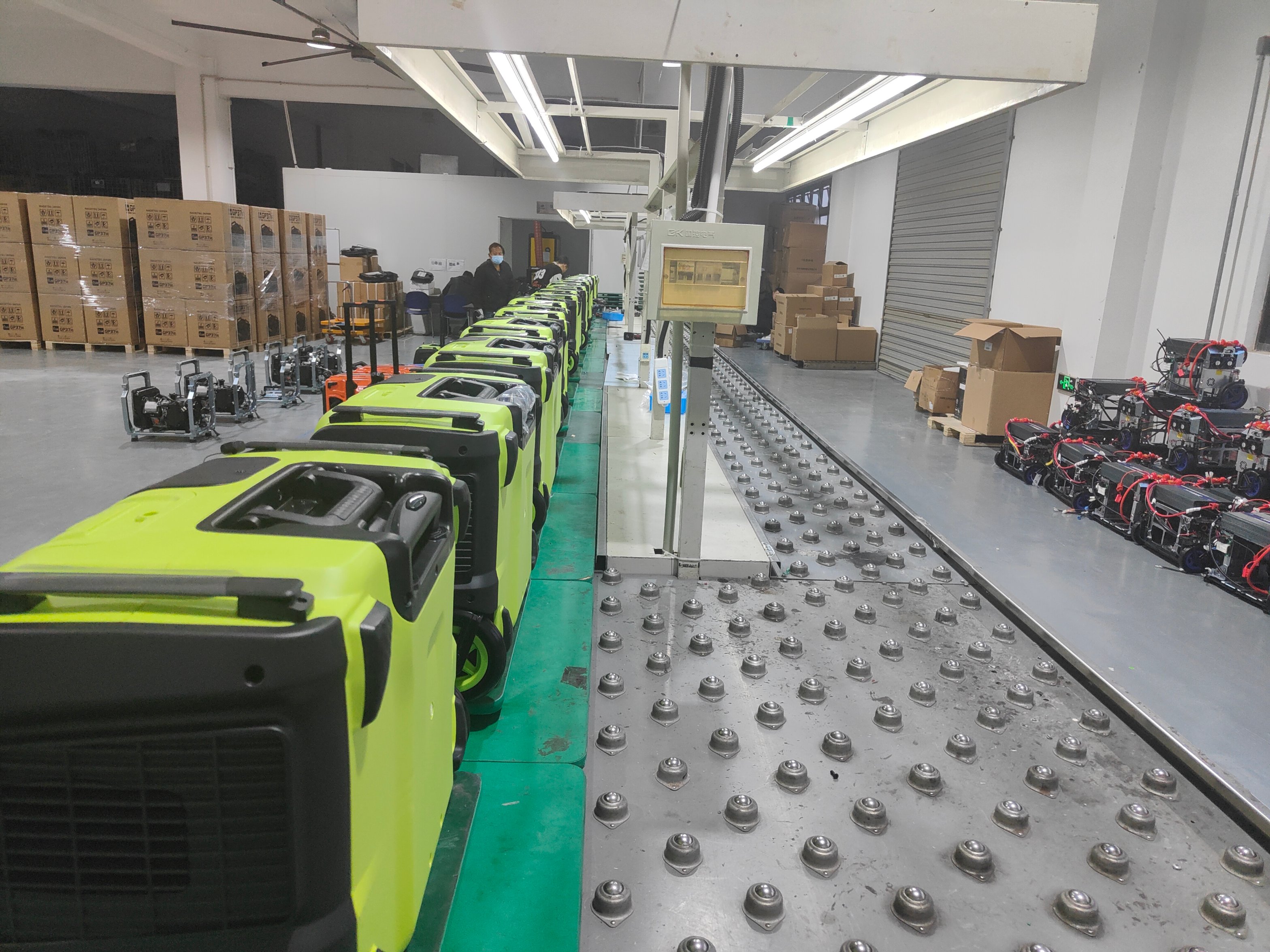

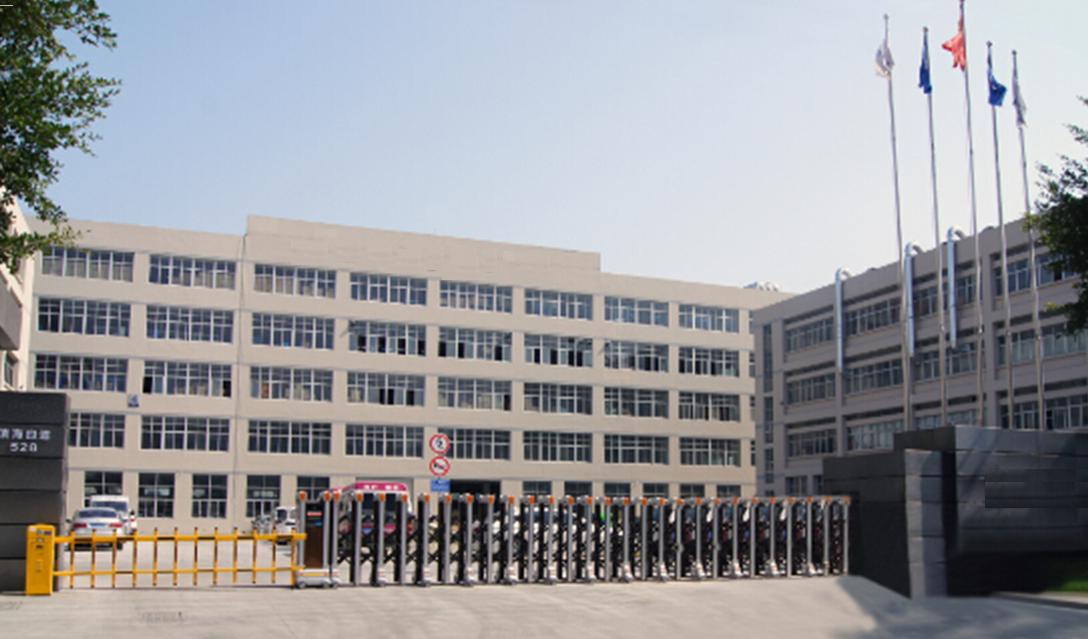

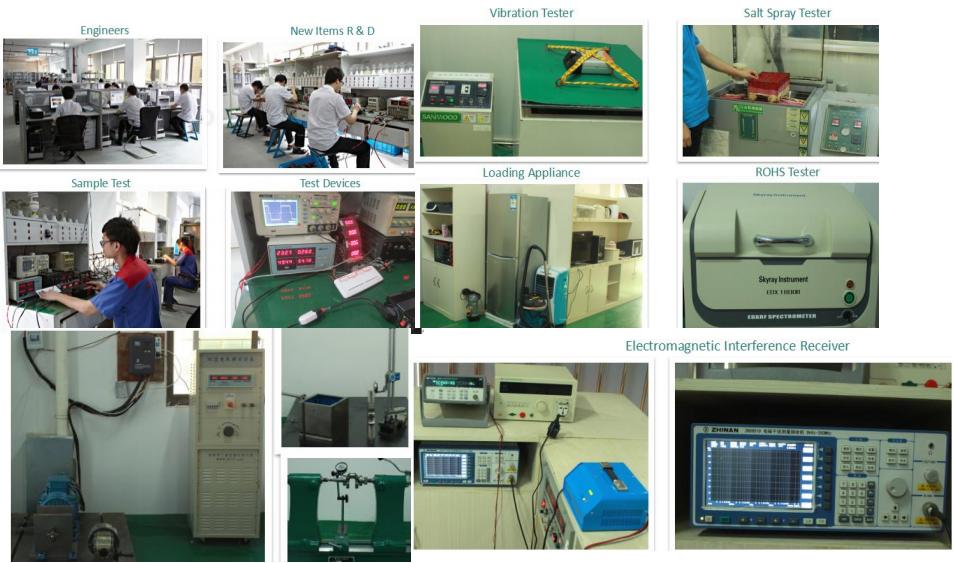

Company Profile Found date: 2003 Plant area:4 Buildings 24000m2 Employee: 400(Technician:30 QE:20) Main products: Inverter generator ,Power station,DC to AC Inverter(car inverter,modified inverter, pure sine wave inverter, soft start inverter,)BATTERY CHARGER, STRIP INVERTER ECT.... Certificate:ISO 9001,BSCI Product certificate: CE‐EMC/LVD,RoHS,TUV,E‐Mark,ETL,RCM(C‐TICK) Monthly output: 100000pcs Quality control Workshops
